JSONP and jQuery with Spring MVC, RESTful Web Service and Maven

Spring Interview Questions and Answers Q1 - Q14 are FAQs

Q1 - Q4 Overview & DIP Q5 - Q8 DI & IoC Q9 - Q10 Bean Scopes Q11 Packages Q12 Principle OCP Q14 AOP and interceptors
Q15 - Q16 Hibernate & Transaction Manager Q17 - Q20 Hibernate & JNDI Q21 - Q22 read properties Q23 - Q24 JMS & JNDI Q25 JDBC Q26 Spring MVC Q27 - Spring MVC Resolvers

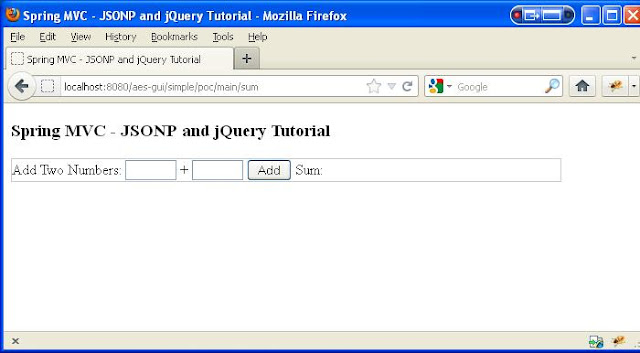

If you have a GUI application (i.e. a war) and a separate RESTful service  application as a separate application running on two different domains, the you need JSONP  for your Ajax to make cross domain calls. In this demo, I will be building a single war and deploy it to two different domains. For example, local and dev. The initial  "sum" page will be loaded from the "local" domain, and once you click on the "add" button, the Ajax call will be made to the "dev" domain to get the calculated sum via the RESTful web service call via jsonp callback.

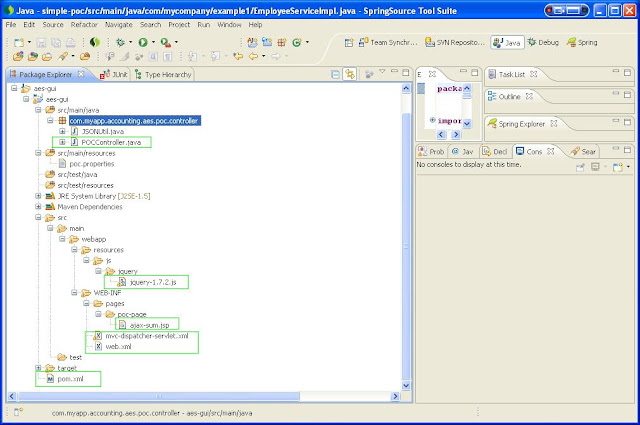

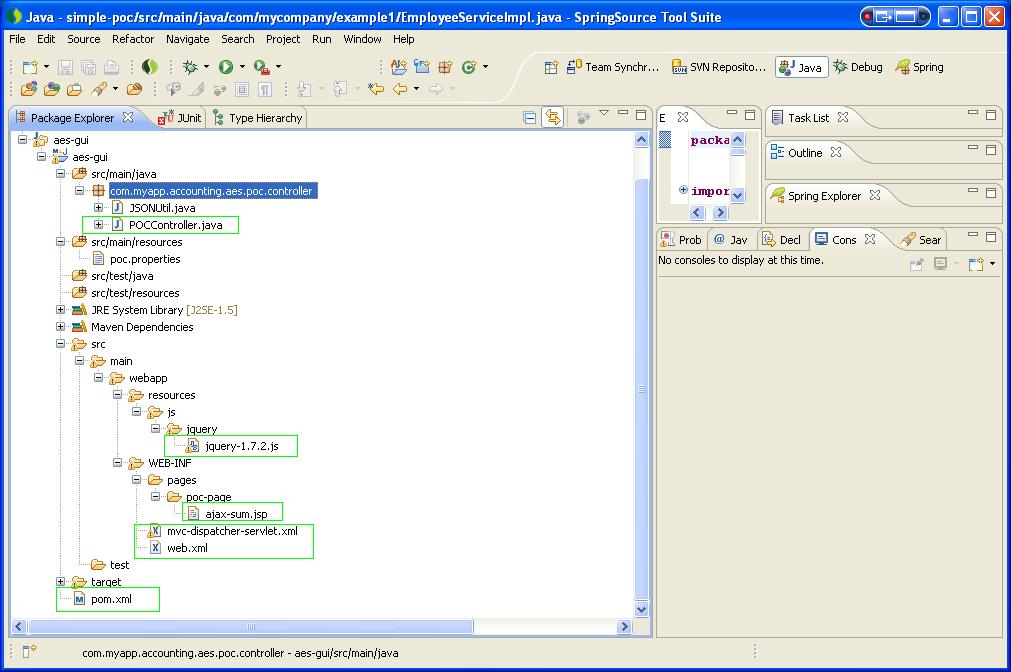

Here are the steps involved in setting up the relevant artifacts.



Step 1:  Create a new maven war project. This was explained in earlier tutorials.You could also create it within eclipse via File --> New --> Other --> Maven --> Maven Project. Skip the archetype selection by ticking the "create a simple project" check box. Fill in the "groupid" and "artifact id" details.The packaging is a "war".

Step 2: Wire up the relevant maven dependencies via the pom.xml.

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
 <modelVersion>4.0.0</modelVersion>
 <groupId>com.myapp.acoounting</groupId>
 <artifactId>aes-gui</artifactId>
 <version>0.0.1-SNAPSHOT</version>
 <packaging>war</packaging>
 <name>aes frontend</name>
 <description>GUI to expose aes services</description>

 <properties>
  <spring.version>3.1.0.RELEASE</spring.version>
  <servlet.jstl.version>1.2</servlet.jstl.version>
  <taglibs.standard.version>1.1.2</taglibs.standard.version>
  <servlet.api>2.5</servlet.api>
  <jackson-mapper-asl.version>1.9.8</jackson-mapper-asl.version>
 </properties>

 <dependencies>

  <!-- Spring -->
  <dependency>
   <groupId>org.springframework</groupId>
   <artifactId>spring-core</artifactId>
   <version>${spring.version}</version>
  </dependency>

  <dependency>
   <groupId>org.springframework</groupId>
   <artifactId>spring-context</artifactId>
   <version>${spring.version}</version>
  </dependency>

  <dependency>
   <groupId>org.springframework</groupId>
   <artifactId>spring-beans</artifactId>
   <version>${spring.version}</version>
  </dependency>


  <!-- Spring MVC framework -->
  <dependency>
   <groupId>org.springframework</groupId>
   <artifactId>spring-webmvc</artifactId>
   <version>${spring.version}</version>
  </dependency>

  <!-- existence of Jackson and JAXB 2 on the classpath will automatically
   create and register default JSON and XML converters -->
  <dependency>
   <groupId>org.codehaus.jackson</groupId>
   <artifactId>jackson-mapper-asl</artifactId>
   <version>${jackson-mapper-asl.version}</version>
   <scope>runtime</scope>
  </dependency>

  <!-- JSTL -->
  <dependency>
   <groupId>javax.servlet</groupId>
   <artifactId>jstl</artifactId>
   <version>${servlet.jstl.version}</version>
  </dependency>

  <dependency>
   <groupId>taglibs</groupId>
   <artifactId>standard</artifactId>
   <version>${taglibs.standard.version}</version>
  </dependency>

  <!-- for compile only, your container should have this -->
  <dependency>
   <groupId>javax.servlet</groupId>
   <artifactId>servlet-api</artifactId>
   <version>${servlet.api}</version>
   <scope>provided</scope>
  </dependency>

 </dependencies>
</project>



Step 3: Define the Spring MC controller class that will be used for both returning the initial "sum" web page as shown above and also exposes the RESTful  web service call to calculate the sum.

package com.myapp.acoounting.aes.poc.controller;

import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;

@Controller
@RequestMapping("/poc/main")
public class POCController {

    //serves the initial page
 @RequestMapping(value = "/sum", method = RequestMethod.GET)
 public String getNonAjaxPage() {
  return "poc-page/ajax-sum"; // returns the poc-page/ajax-sum.jsp
 }



 //serves the RESTful web service
 @RequestMapping(value = "/add", method = RequestMethod.GET)
 public ResponseEntity<String> add(
   @RequestParam(value = "inputNumber1", required = true) Integer inputNumber1,
   @RequestParam(value = "inputNumber2", required = true) Integer inputNumber2,
   @RequestParam(value = "callback", required = false) String callback,
   Model model) {

  //do the actual adding
  Integer sum = inputNumber1 + inputNumber2;

  String result = null;

  // @ResponseBody will automatically convert the returned value into JSON
  // format. You must have Jackson in your classpath

  if (callback != null && callback.trim().length() > 0) {
   result = callback + "(" + sum + ")";
  }

  HttpHeaders responseHeaders = new HttpHeaders();

  return new ResponseEntity<String>(result, responseHeaders, HttpStatus.OK);
 }
}

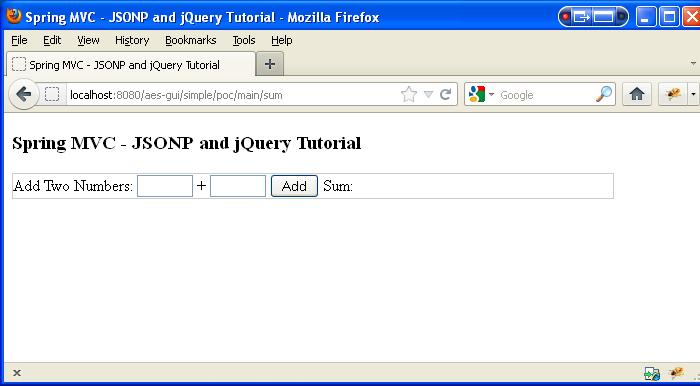

Step 4: The ajax-sum.jsp that gets returned when the following URL is typed on a browser.

http://localhost:8080/aes-gui/simple/poc/main/sum


You could notice here that the jQuery.js is loaded from the localhost domain and the Ajax call is made to the DEV domain.

<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
 <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">

  <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">

 <!-- This page and jQuery JS are downloaded via localhost domain-->
 <script type="text/javascript" src="/aes-gui/resources/js/jquery/jquery-1.7.2.js"></script>

 <title>Spring MVC - JSONP and jQuery Tutorial</title>
</head>
<body>

<h3>Spring MVC - JSONP and jQuery Tutorial</h3>

<div style="border: 1px solid #ccc; width: 600px;">
 Add Two Numbers:

 <input id="inputNumber1" name="inputNumber1" type="text" size="5" > +
 <input id="inputNumber2" name="inputNumber2" type="text" size="5">
 <input type="submit" value="Add" onclick="add()" />

 Sum: <span id="sum"></span>
</div>


<script type="text/javascript">

 function add() {
  var url = 'http://DEV:8080/aes-gui/simple/poc/main/add?callback=?';

  console.log("logging...............");

  $.ajax({
   type : 'GET',
   url : url,
   data : {
    inputNumber1 : $("#inputNumber1").val(),
    inputNumber2 : $("#inputNumber2").val()
   },
   async : false,
   //contentType : "application/json",
   dataType : 'jsonp',
   //jsonp:  "callback",
   //jsonpCallback: processJSON(jsonData),
   success : function(response, textStatus, jqXHR) {
    console.log("reached here");
    // data contains the result
    // Assign result to the sum id
    $("#sum").replaceWith('<span id="sum">' + response + '</span>');
    console.log(response);

   },
   error : function(jqXHR, textStatus, errorThrown) {
    console.log(errorThrown);
   }
  });
 };

</script>


</body>
</html>

Make sure that you have downloaded the jquery-x.x.x.js library file and saved it under resources/js/jQuery/ folder.

Step 5: The next step is to wire up everything via web.xml and spring application context files.

Firstly, the web.xml file. This will be under the WEB-INF folder.

<?xml version="1.0" encoding="UTF-8"?>

<web-app version="2.5" xmlns="http://java.sun.com/xml/ns/javaee"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">

 <!-- Processes application requests for Securities component related requests -->
 <servlet>
  <servlet-name>mvc-dispatcher</servlet-name>
  <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
  <load-on-startup>1</load-on-startup>
 </servlet>

 <servlet-mapping>
  <servlet-name>mvc-dispatcher</servlet-name>
  <url-pattern>/simple/*</url-pattern>
 </servlet-mapping>

 <context-param>
  <param-name>contextConfigLocation</param-name>
  <param-value>/WEB-INF/mvc-dispatcher-servlet.xml</param-value>
 </context-param>

 <!-- Creates the Spring Container shared by all Servlets and Filters -->
 <listener>
  <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
 </listener>

</web-app>



Secondly, the Spring application context file.

<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="
            http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
            http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-3.1.xsd
            http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd">


    <context:annotation-config />
 <context:component-scan base-package="com.myapp.accounting.aes" />

 <mvc:annotation-driven />

 <bean
  class="org.springframework.web.servlet.view.InternalResourceViewResolver">
  <property name="prefix">
   <value>/WEB-INF/pages/</value>
  </property>
  <property name="suffix">
   <value>.jsp</value>
  </property>
 </bean>

</beans>

That's all to it.






Labels: ,

7 Comments:

Anonymous Anonymous said...

jsonp only works with GET

7:17 PM, November 22, 2012
Blogger Arulkumaran Kumaraswamipillai said...

That is right. if you need to support for PUT, POST, etc use CORS (Cross Origin Resource Sharing).

11:44 PM, November 22, 2012
Anonymous Anonymous said...

Thank you for taking the time to write this. One of the only articles that I've come across that actually has a working, simple, and understandable example.

4:47 PM, February 22, 2013
Blogger Arulkumaran Kumaraswamipillai said...

I have blogged about CORS as well.

4:29 PM, November 11, 2013
Anonymous orshoe said...

For simple ResponseEntity types like String, this is the easiest way. When the response is a complex json, it may have to be intercepted and padded in a filter.

4:32 AM, January 01, 2014
Blogger Karthick said...

Hi Arul, How to get the JSON output using this example.

7:48 AM, April 10, 2014
Blogger Arulkumaran Kumaraswamipillai said...

In your cotroller that services the RESTful services need to have the annotation like

@RequestMapping(
value = "/account/{accountCd}/transactions/search",
method = RequestMethod.GET,
produces = "application/json")

Full example, refer --> http://java-success.blogspot.com.au/2013/04/restful-web-service-uri-conventions.html

12:09 PM, April 15, 2014
